Oil Rotary Vacuum Pump

•


• - Displacement speed(60Hz) : 3320 ~ 8000 ℓ/min
• - Ultimate Pressure : 1 Stage : 3 x 10-2 Torr
  2 Stage : 5 x 10-4 Torr

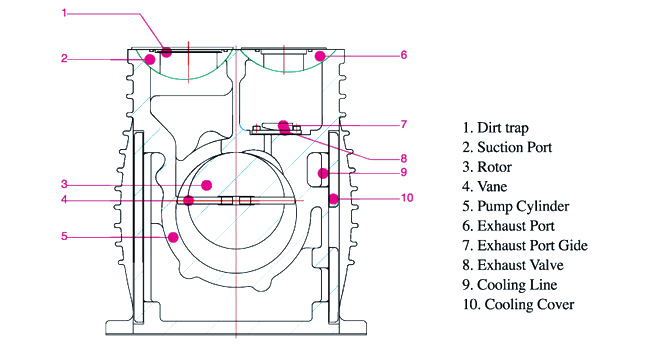

Oil rotary vacuum pump (Direct vane type vacuump pump :MS Series MSP 1Stage and 2Stage) MS series type pump is oil rotary vacuum pump and designed to be used widely for all vacuum industries in both laboratory and industrial facilities. As shown in fig, this vacuum pump consists of pump body, including pump housing, rotor being eccentric in cylinder of motor oil case, the front and rear covers of cylinder, and parts related to it. This pump is bases on the principle that pump and motor are connected by flexible coupling, and than, even rotor of pump turns as motor turns. As rotor rotates, two vanes in groove of vane of rotor turn, making contact with the internal side of cylinder by centrifugal force. The gas thus drawn in through the intake port with dirt. Trap passes the open airing isolation valve and streams into the pump chamber. As vanes being rotated pass near the intake aperture, the gas in confined between two vane and then, turn toward exhaust valve. Passing exhaust valve, gas starts to be compressed, and the fully- opens exhaust valve and is exhausted through exhaust port. The inside and vane of cylinder, vane and vane of rotor and moving parts will be lubricates, and also, oil to be given to cylinder for security of seals.

• •The stable cooling effect
  Because the cooling water is flowing between the first cylinder and the
  oil casing and the cooling effect is superior. (Continuous running is
  possible at low vacuum)


  •Stable vacuum pressure
  The oil pump supplies proper amount of oil inside the cylinder according
  to vacuum pressure degree, which causes very small amount of
  changing vacuum pressure compared to operation hour.


  •The small vibration
  By realizing directly connected driving that the geometric design is
  applied to minimize the eccentric rotation, it shows very small vibration in
  compared to piston type having the same displacement.


  •Weight reduction, and a miniaturized vacuum pump
  Integration of the cylinder and the casingMinimize the installation area of
  the original format.


  •Small noise
  By ideally designing the valve catcher situated at the exhaust valve, we
  realized very small noise.


  •Oil pressure gauge and oil filter are equipped.
  Filtered oil without strange material is supplied inside the oil pump and
  also, you can know when the filter will be changed through the filter
  pressure guage.


  •Excellent compatibility
  It is manufactured in order that the one-stage pump and the two-stage
  pump are mutually compatible.


  •Automatic control oil supply volume
  It properly control oil supply according to pressure inside the cylinder.


  •This pump is designed for easy maintenance.
  Inside extension connected with casing cover ensures the proper space.
  Also, it is designed in order to easily separate oil and humidity in order to
  minimize oil flow even during operation.


  •Simple treatment and easy overhaul
  The casing has several side covers at pump’s side and top for easy
  cleanup, which has everyone easily disassemble and clean up it.


  •ISO standards application
  According to using ISO standards motor application, anyone can shift
  and change the motor easily at anyplace and anytime.


  •Oil Mist Trap are possible to take easily-Option
  Oil Mist Trap is designed for less oil smoke, noise and oil consumption.


  •Gas ballast valve are possible to be easily installed-Option.
  It can take an adoption gas ballast valve in order to reduce condensation
  of moisture.


  •Affixed the oil circulation safety device
  When the oil filter is blocked, automatically, the oil circulation safety device
  immediately supplies the oil which is not filtered to the lubricating parts.



•



•


•
