Oil Rotary Vacuum Pump

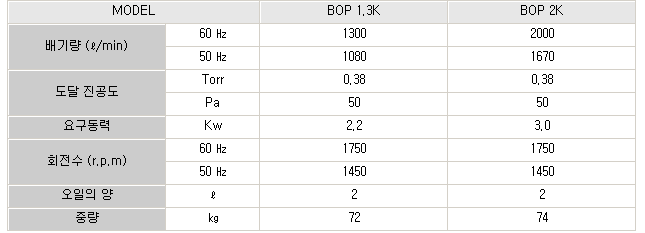

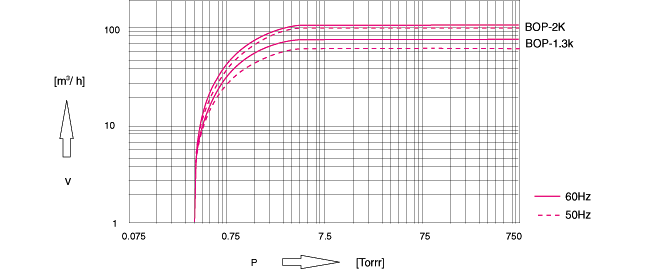

• - Displacement speed(60Hz) : 200 ~ 13000 ℓ/min
• - Ultimate Pressure : 15 Torr (745 mmHg) / 0.38 Torr (759.62 mmHg)

Oil rotary vacuum pump (Direct vane type vacuum pump :BOP series)is oil rotary vacuum pump. This pumps are made up casing, rotor, three vane. Rotation of the pump rotor, which is mounted eccentrically in the pump cylinder, traps entering vapor between rotor vane segments. As rotation continues, vapor is compressed and discharged into the exhaust box. These pumps are one stage and direct driven. cylinder motor oil case, the front or rearcover of cylinder, and parts related to it.



1) This oil circulating design is one of the simplest and most reliable vacuum pumps.

2) Noise and vibration is low and this pumps are little of exhaust oil volume so used clean workspace

3) Compact, simple design for easy installation and low maintenance

4) Applying advanced material vanes for achieving reliability, heat-resistant and corrosion resistant

5) Oil filtration unit is cleaning the re-circulating oils

6) Standard anti-suck back valve

7) High water vapor tolerance: 30mbar

•


•




•



•
