Oil Rotary Vacuum Pump

•

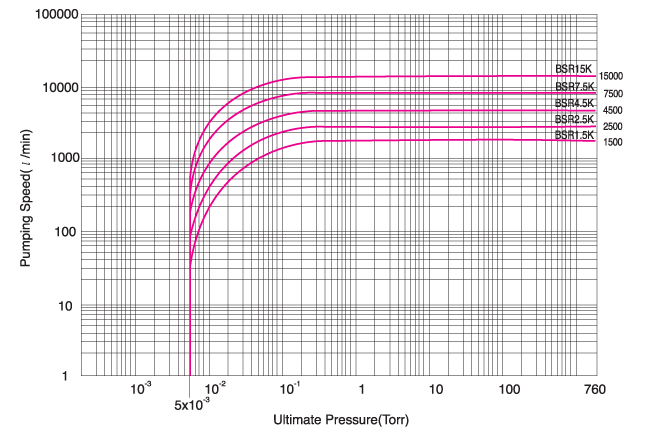

• - Displacement speed(60Hz) : 1500 ~ 15000 ℓ/min
• - Ultimate Pressure : 5 x 10-3 Torr

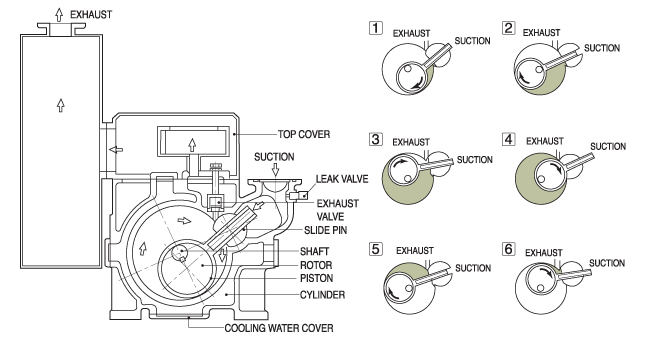

Oil rotary vacuump pump (Belt piston type vacuum pump BSR Series : BSR1.5K,BSR2.5K,BSR4.5K,BSR7.5K,BSR15K) dose not spin on its axis, but moves in a circular path within the pumping chamber. As it passes top dead center, its creates a constantly increasing internal space on the inlet or suction side and constantly decreasing internal space on the pressure or discharge side. The compressed gas is exhausting out through the exhaust port.

•


•



•



•
