Mechanical Booster pump

•

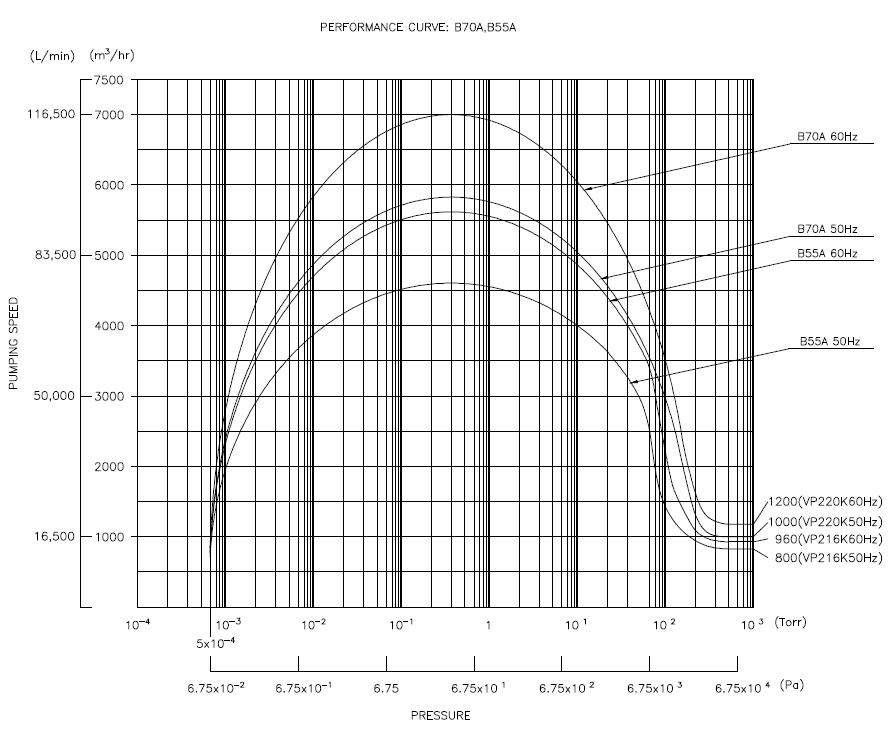

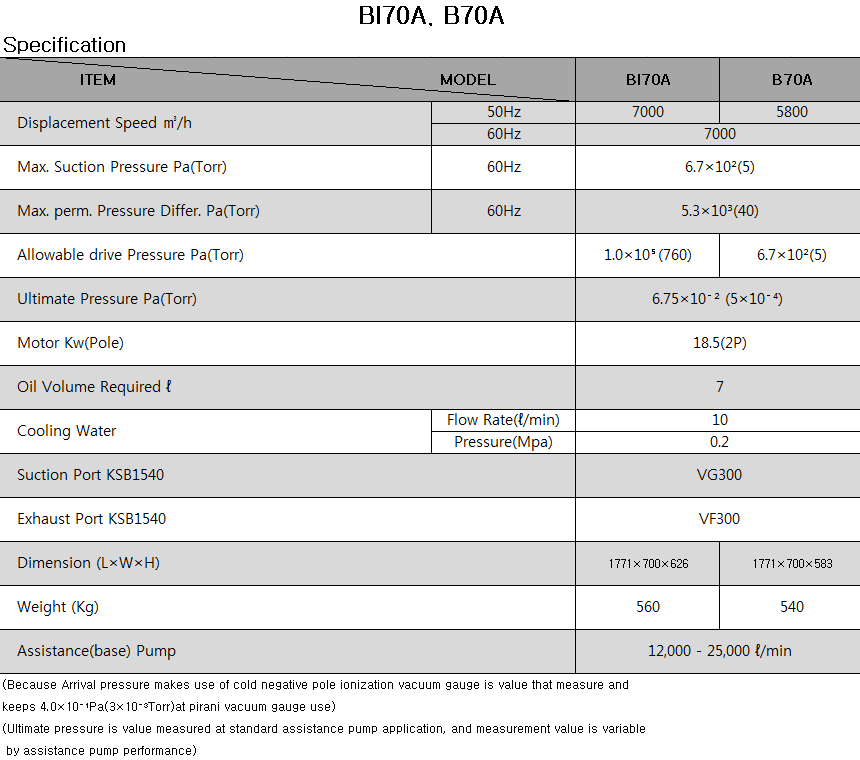

• - Displacement speed(60Hz) : 5800 ~ 7000 m3/hr
• - Ultimate Pressure : 5 x 10-4 Torr

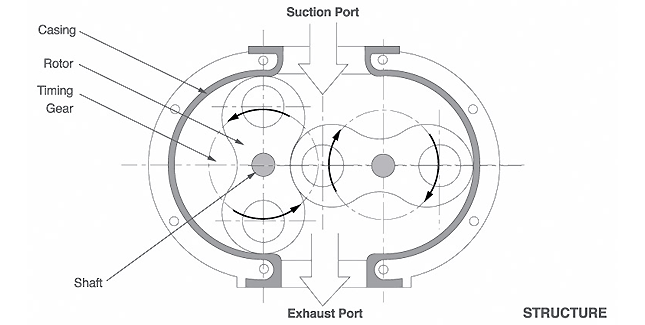

Mechanical booster pump(Inverter operating type) consist of two lobed rotors mounted on parallel shafts in casing. The rotors have substantial clearance(0.1~0.6mm) between themselves and the housing. They rotate in synchronism in opposite directions at speed of 3500rpm. This is possible because a fluid is not used to seal the gaps between the rotors and the pump housing. The two lobes counter-rotate to continuously transfer gas in one direction through the pump to backing line. Bestech's mechanical booster pumps are using high-grade alloy and special coated rotor to wear resistance and to enhance stiffness. Also, the special mechanical seal provide longer life cycle and reliability.

•





  ⦁ Industry's capacity


   "Form of direct drive pumps.


    The industry's highest capacity."




  ⦁ Small, light-weight structure


   High-capacity pump rotational speed (3600rpm) is a miniaturized format.


   It takes very little installation and management.


   Further, the aluminum alloy consists of the handling is easy.




  ⦁ Performance is very good


   To get the efficiency inside casing because it is not the lubricating ins stabilized even


   about the fume of vapor and solvent etc.




  ⦁ Maximize the amount of cooling water heat exchanger


   water line, by creating a cooling effect inside the pump is superior.




  ⦁ High vacuum stability


   Pumps for precision manufacturing rotor with microscopic can keep the gap.


   So a stable vacuum could reach performance.








  ⦁ You can check the amount of oil and pollution


   Sight glass is installed on each of the lubricating oil contamination levels and can be confirmed.




  ⦁ Rapid initial exhaust structure


   "Auxiliary vacuum pump exhaust state that


    Lubrication Area Process Area "


   and the problem Therefore, a vacuum state is reached faster




  ⦁  Inverter Control - Optional


   Start the motor by controlling the inverter operation best performance, the load of the pump


   can be reduced.




  ⦁ Separate exhaust system Lubrication Area - Optional


   Lubrication Area Process Area and the contamination of the exhaust can be blocked separately.





  ⦁ The better resistant to abrasion


   Inside contact surface is higher strong, It can take the special treatment at surface


   as the demand that those are very strong resistant to abrasion.




  ⦁ ISO Standards application


   According to using ISO standards motor application, anyone can shift and change the motor


   easily at anyplace and anytime.





  ⦁ Used high precision gear with high hardness


   Used a high precision and the high grade hardness gear that can use with high-speed


   rotation, this gear has small vibration and small noise.





  ⦁ Solid disk type mechanical seal application.


   Mechanical seal where applies solid disk of the high grade hardness, wear is less


   and durability are very good.










•




•


•
