Dry pump

•

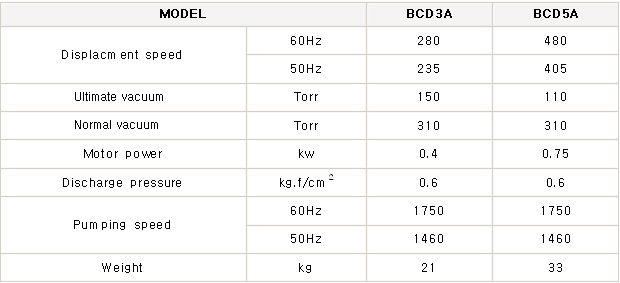

• - Displacement speed(60Hz) : 280 ~ 1350 ℓ/min
• - Ultimate Pressure : 110 ~ 150 Torr

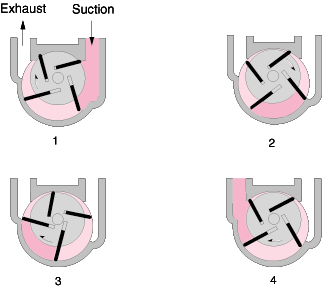

Carbon vane type vacuum pump (BCD Series:BCD3A,BCD5A)Rotation of the pump rotor, which is mounted eccentrically in the pump cylinder, traps entering vapor between rotor vane segments. As rotation continuous, vapor is compressed and discharged into the exhaust port. Major principle is same as BOP type and vanes are made of carbon. No oil is supplying into internal parts.

• 1) Compact, light weight and direct driven design

  2) Quiet operation

  3) Oil free and keeps air clean

  4) No oil and no grease are necessary

  5) Easy maintenance and repair


•



•



•
