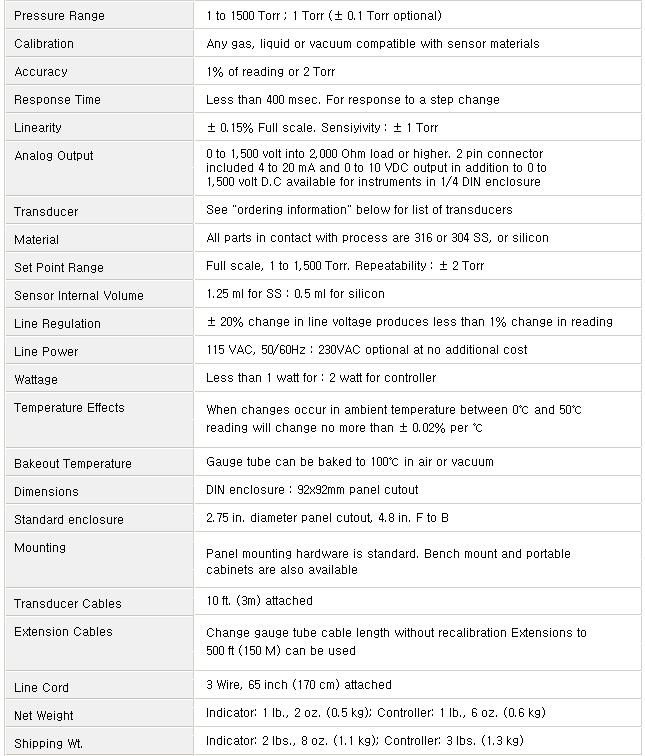

Diaphragm Manometer vacuum gauge(P/N902094)
Model : P/N902094

1 to 1500 Torr Range ; ±1 Torr Resolution
±0.1 Torr Resolution Available as Option
Available in 1 to 2000 mbar & 0.1 to 200 kPa
316 S.S. Diaphragm Measures Gas or Liquid
Dual Set Point Controller With 2 Relays
Easy To Read Large Backlit Digital Display
Linear 0 to 1.5 VDC Output; 4-20 mA Optional
Fast Response ; Less Than 400 mSec. Full Scale

Diaphragm Manometer are compact vacuum measurement and control instruments. The sonsors are available with either 316SS or pure silicon diaphragms and any sensor can measure liquid or gas pressure as well as vacuum.
Response time is less than 400 milliseconds for full scale and sensors are available with a variety of flanges including 15mm, VC, and KF-16, With any sensor, these instruments offer the precision and high resolution of digital electronics at the same price as analogue instruments. Both indicator and controllers are provided in 1/4 DIN or standard cylindrical enclosures.

The Dual Set Point Controller operates two control relays. Set point values are adjusted from the font panel and displayed on the meter. Push-to-set switches simplify display of the set point pressures. Relays have 3 Amp contacts, SPDT, and have screw terminal connectors on the rear of the instruments.

•


•


•



•
