Wide Range Diaphragm Manometer vacuum gauge(P/N902074)
Model : P/N902074
Wide Range : 10-3 to 1500 Torr
Available in .001 to 2000 mbar & 0.1 to 200 kPa
Linear with Any Gas from 2 to 1500Torr
Up to 4 Adjustable Set Points and 3 Amp Relays
0 to 2 VDC, 0 to 10 VDC, and 4 to 20 mA Outputs
Linear Analog Outputs for Computer Interface
Large Easy to Read Green LED Display
Stainless Steel or Silicon Diaphragms Available
Bench or Panel Mount Enclosure
400 mSec. Response Time From 2 to 1500Torr
1.25 Sec. Response Time From 1 to 2000mTorr
All Cables and Mounting Hardware Included
Extension Cables up to 250 Feet
Fast Response

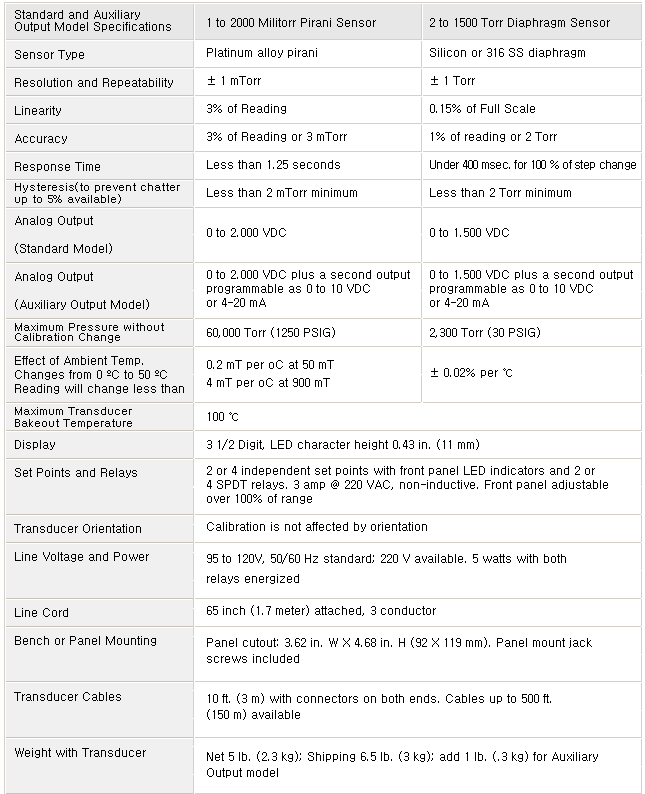

The Wide Range Manometer uses a fast response diaphragm sensor to provide high accuracy measurements that are unaffected by gas composition from 2 1500 Torr. At pressures form 2000 mTorr to one mTorr the easy to read green LED display in driven by a rugged Pirani sensor that is mounted in the transducer next to the Diaphragm sensor. The Diaphragm and Pirani sensors are both mounted in the same transducer body, and the diaphragm sensor is easily replaceable in the field.
Unaffected By Sensor Orientation.
This durable process cont기 instrument uses a transducer body machined from a solid block of stainless steel and, unlike convection gauges, our wide range gauge accuracy is not affected by the transducer orientation or gas composition.
Four Set Points for Process Control
The Standard Wide Range Manometer includes 2 adjustable set points, while the optional version provides 4 adjustable set points for process control. These process cont기 set points have front panel LED indicators and can be set anywhere in the range of he instrument. Each Set Point drives its own SPDT relay.
Contacts are rated 3 amps@220v, non-inductive.
0 to 10 VDC and 4 to 20 mA Outputs.
The standard instrument provides 0 to 2 VDC and O to 1.5 VDC outputs.
In addition to these standard outputs, the optional version provides 2 programmable analog outputs of 0 to 10VDC or 4 to 20mA
Torr, milliBar, Pascals
Wide Range Manometer reads directly in Torr and mTorr, but ranges of .001 to 2000 millibar and 0.100 Pascals to 200 kiloPascals are available at no extra charges.
