Vacuum Component
- Oil mist trap
Oil mist trap

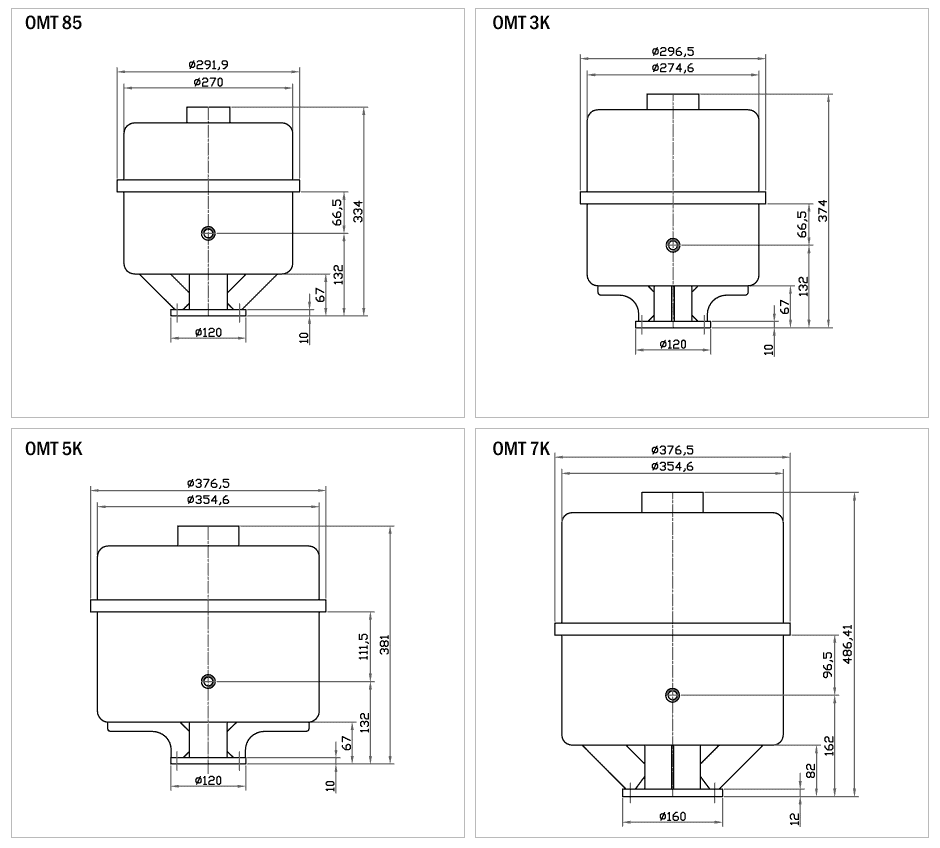

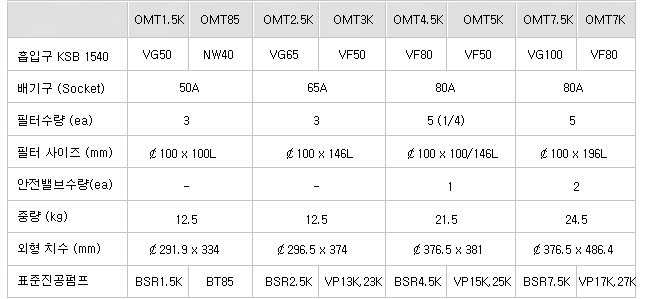

OMT Series Detail
- - Displacement speed(60Hz) :
- - Ultimate Pressure :
VACUUM COMPONENT-OIL MIST TRAP: OMT Series,The gas which is sucked from suction port and oil mist are exhust through exhaust port at the same time, when the vacuum pump is operation. This oil mist trap's effect is filterling of gas and oil mist, it has advantage of returning exhausted oil.
- 1) It can separate oil mist, dust, sludge
2) The filter is separate of over the 99%
3) It can use without additional parts.
4) It is easy to change filter element.
5) It has advantage reducing exhausted pressure because of adopted safety device. (It can operate automatically over pressure of 1.2 kgf/㎠ )
6) You will be able to reduce oil consumption because of adopted check valve. (You can drain though the oil drain socket.)
